Twitter1 Piece (MOQ)
| Business Type | Manufacturer, Exporter |
| Material | Stainless Steel |
| Driven Type | Electric |
| Type | Automatic |
| Click to view more | |
Preferred Buyer From
| Location | Worldwide |
Product Details
Certification
CE Certified
Application
Industrial
Color
Grey
Voltage
220V
Warranty
1 Year
Country of Origin
India
STANDARD EQUIPMENTS :
- Draw Bar
- Power Pack with Cylinder
- Electrical Control Panel with Switch Box & Motors
- Machine Lamp
- Bellow Covers & Base Splash Tray
OPTIONAL EQUIPMENTS :
- Dividing Head
- Rotary Table
- Milling Machine Vice
- DRO (Digital Read Out)
- Electric Coolant Pump & whichever not mentioned in standard
Note :
- Being committed to continual improvement, all specifications are subject to change without prior notice.
- We always focus to do customization/ automation in machines as per our customer’s need.
- Jig Fixtures, Tooling, Cutters & Inserts, Job Clamps etc. in buyer’s scope.
- Final Inspection is mandatory once before despatch from our factory to avoid unsought advices.
Specifications

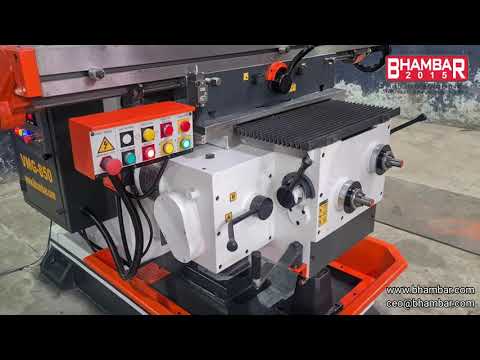

| MODEL | VMG 700 | VMG 850 | VMG 1100 | VMG 1200 | VMG 1300 | |
| Work Table Size | 1350×300 | 1600×350 | 1900×400 | 2100X400 | 2300×500 | |
| Swivel of Table | ±45° | ±45° | ±45° | FIX | FIX | |
| T-Slot Nos. / Bolt Size | 03/16/23 | 03/16/23 | 05/16/23 | 05/20/23 | 05/20/23 | |
| T-Slot Centre Distance | 65 | 90 | 80 | 90 | 95 | |
| Distance From Spindle to Table max/min | 350-60 | 425-75 | 475-75 | 575-75 | 625-75 | |
| X-Longitudinal Table Travel | 700 | 850 | 1100 | 1200 | 1300 | |
| Y-Cross Table Travel | 225 | 325 | 450 | 500 | 550 | |
| Z-Knee Vertical Travel | 410 | 500 | 600 | 650 | 700 | |
| Table Loading Capacity in (kgms.) | 350 | 700 | 1100 | 1800 | 2500 | |
| FEEDS & RAPIDS IN X-Y-Z AXIS | ||||||
| No. of Feeds | 18 | 18 | 18 | 18 | 18 | |
| Range of Longitudinal Feed/min | 18 to 400 | 18 to 400 | 18 to 400 | 13 to 305 | 13 to 305 | |
| Range of Cross Feed /min | 18 to 400 | 18 to 400 | 18 to 400 | 13 to 305 | 13 to 305 | |
| Range of Vertical Feed /min | 2.5 to 62 | 2.5 to 62 | 2.5 to 62 | 4 to 90 | 4 to 90 | |
| No. Of Rapid Traverse | 2 | 2 | 2 | 2 | 2 | |
| Longitudinal Rapid Feeds / min | 900, 1500 | 900, 1500 | 735, 1065 | 500, 735 | 500, 735 | |
| Cross Rapid Feeds/ min | 900, 1500 | 900, 1500 | 735, 1065 | 500, 735 | 500, 735 | |
| Vertical Rapid Feeds/min | 147, 210 | 147, 210 | 147, 210 | 165, 250 | 165, 250 | |
| SPINDLE DETAILS | ||||||
| No of Spindle Speeds | 12 | 12 | 12 | 12 | 12 | |
| Range of Spindle Speeds (RPM) | 45-1120 | 45-1120 | 45-1120 | 45-1120 | 45-1120 | |
| Spindle Taper Standard | ISO 40 | ISO 40 | ISO 40 | ISO 40 | ISO 40 | |
| Quill Travel Manual (mm) | 95 | 95 | 95 | 95 | 95 | |
| ELECTRICAL | ||||||
| Spindle Motor/ RPM’s | 3HP/ 1440 | 5 HP/ 1440 | 7.5 HP/1440 | 10 HP/ 1440 | 10 HP/ 1440 | |
| XYZ Axis Feed Motor | 2 HP | 2 HP | 3 HP | 3 HP 935 RPM | 3 HP 935 RPM | |
| Coolant Motor | 0.1 HP | 0.1 HP | 0.1 HP | 0.1 HP | 0.1 HP | |
| FLOOR & PACKING DIMENSIONS (APPROX.) | ||||||
| Overall Length | 2000 | 2050 | 2500 | 2700 | 2700 | |
| Overall Width | 1750 | 1950 | 2500 | 2600 | 2600 | |
| Overall Height | 1800 | 1880 | 2400 | 2700 | 2700 | |
| Net Weight kgms. | 2500 | 3500 | 4200 | 5500 | 7000 | |
| Gross Weight with Wooden Packing | 3500 | 4600 | 5500 | 6800 | 8500 | |
